Termopareti ® Bubble
They have been studied to create original architectural impressions and they can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
The panels TERMOPARETI ® BUBBLE (patented) are avaible in different types and are unlike the traditional panels. In fact they have been studied to create original architectural impressions and they can be used in industrial, commercial, residential building and public utilities for the new buildings and for restructures.
The panels can be used for continous and/or discontinous external walls, internal partitions and ceilings, The product, thanks to its characteristics, can be widely employed and architects and designers have freedom of choice in a wide range of materials and colours.The panels can be used on any type of structure such as metallic, concrete and wood and their erection can be vertical, horizontal or inclined. the panels have a joint and they are fixed with specific accessories.The peculiarity of the panels BUBBLE is on the external surface: pressed spherical imprints on the steel that give an impressive architectural effect to the building.
The imprints are negative respective the external side of the support and they can be realized on different materials such as galvanized and/or prepainted steel, aluminium, stainless steel and copper.Elements with thermic cut such as rounded and right corners, edges and spherical connections, are finishing that complete and bring out the TERMOPARETI ® BUBBLE
I pannelli TERMOPARETI ® BUBBLE (brevettati) sono dotati di un profilo continuo in PVC ad incastro speciale, sul lato femmina, per dare maggiore stabilità al fissaggio ed evitare distacchi delle lamiere dall’isolamento, sia durante la manipolazione che in fase di montaggio.

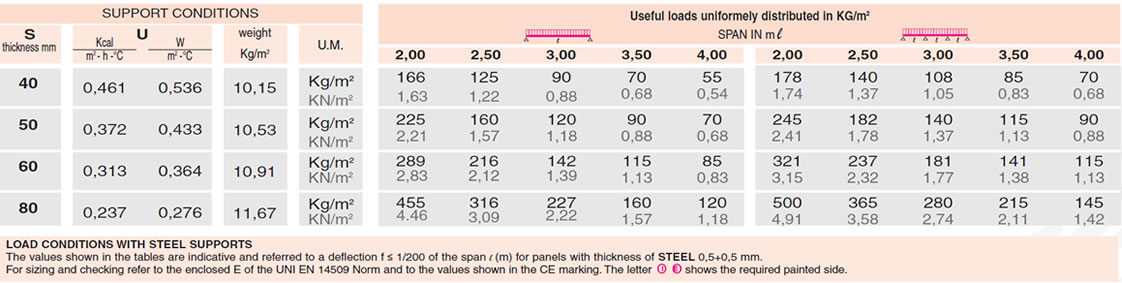

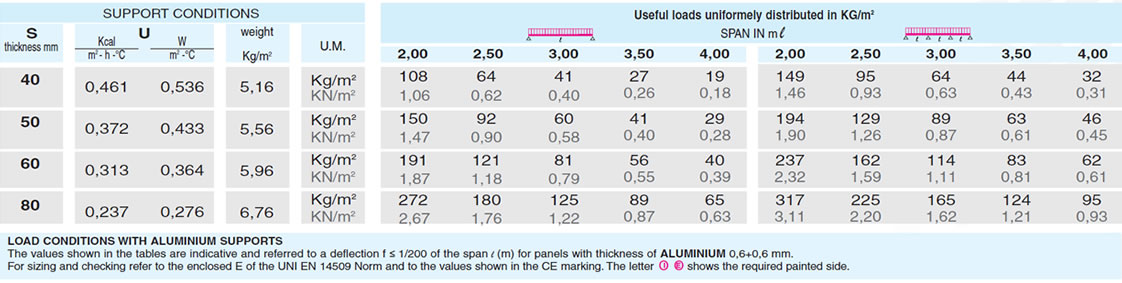

Technical and performance characteristics
STEEL AND PREPAINTING – S 250 GD+Z UNI EN 10147
ALLUMINIUM – alley 3105 physic estate H46 EN 508/2
COPPER – CW 024A – R240 EN 1172
ACCIAIO INOX – AISI 304 2B UNI 10372
PUR Density 40 Kg/m3 – B1 DIN 4102
λ = 0,0020 Kcal/mqh° C
Choose Elcom System
Whatever your needs, we will do our best to meet yr. requirements. Fill in the form below
For more details you can read online or download in PDF format in all the catalogs produced by Elcom System Spa.
