Serbond ®

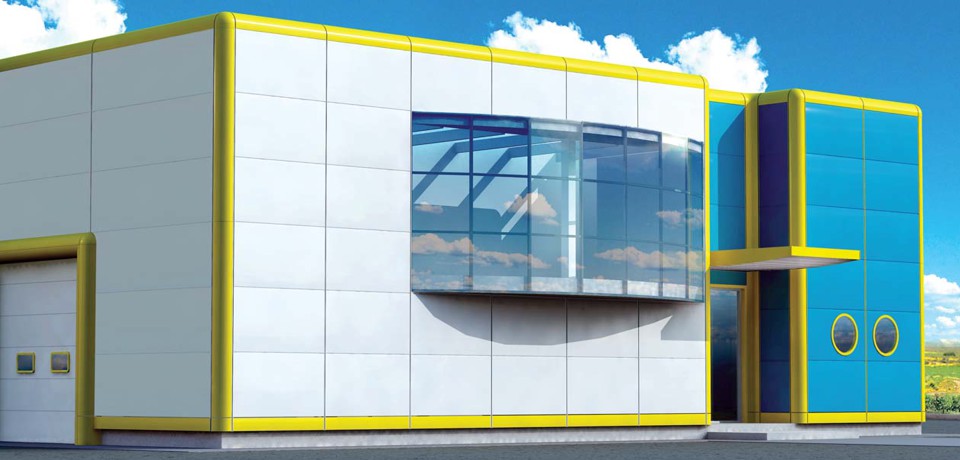

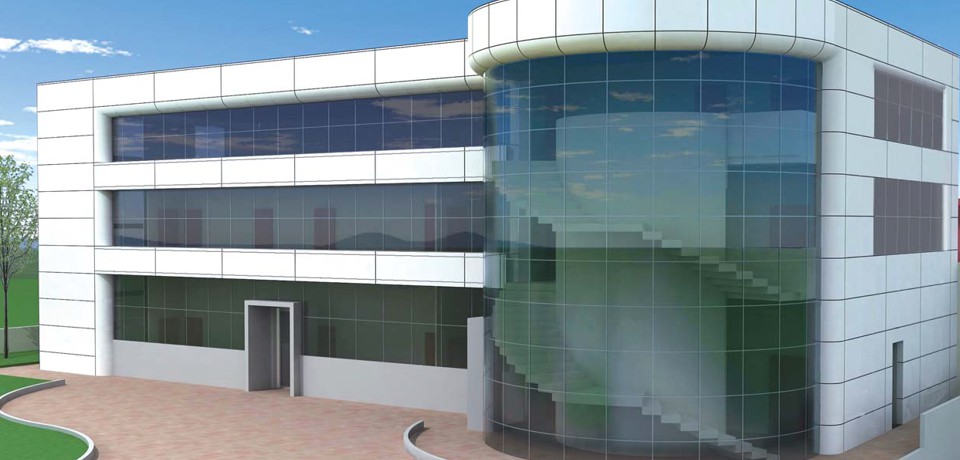

The SERBOND® system has been developed to offer to the designers the possibility to creating tailor-made projects, having not to refer to rigid standards or defined geometric rules. This particular facing system is mainly directed towards commercial, residential building and public utilities; it can be used both for new buildings and for restructures.

Thanks to the different types of accessories the system can be employed in any type of structures such as concrete, traditional masonry, steel and wood. The erection of the panels, supported by our technical assistance during the planning phase, is easy and can be effected without the use of special site means.

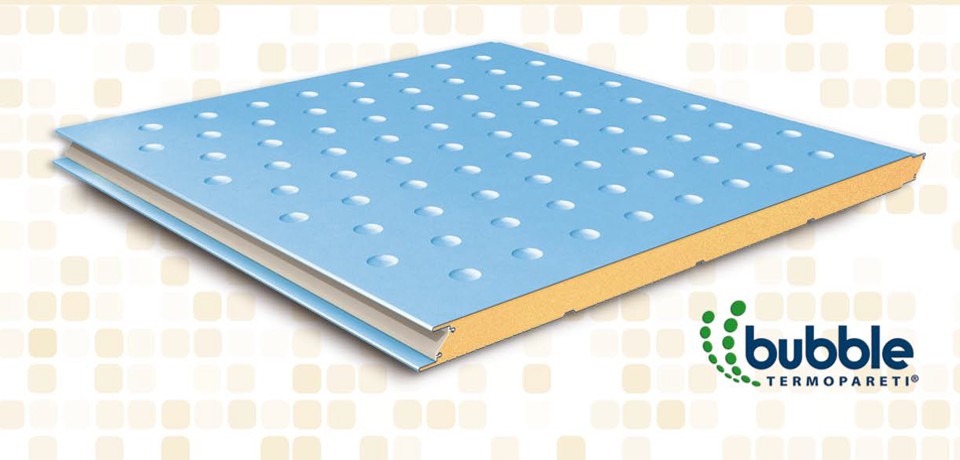

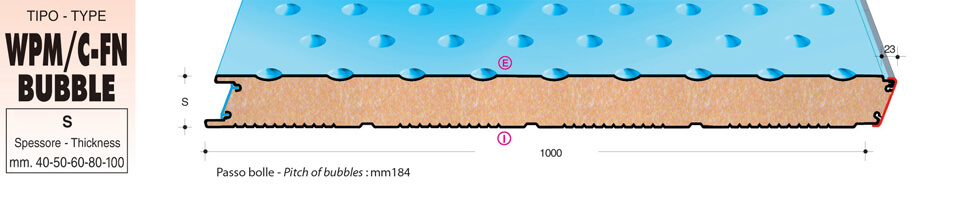

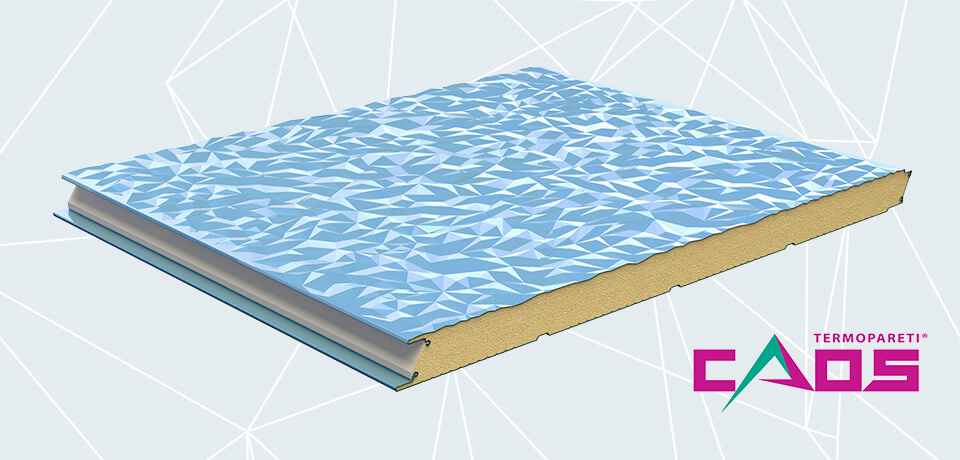

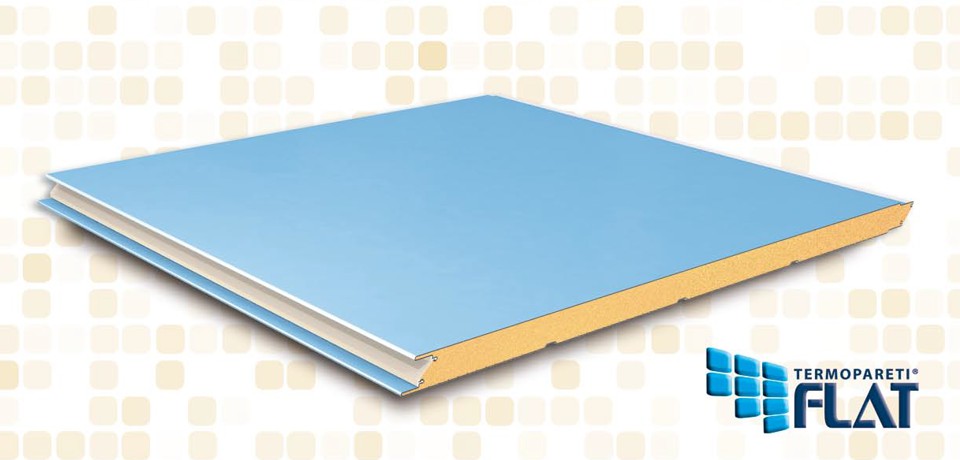

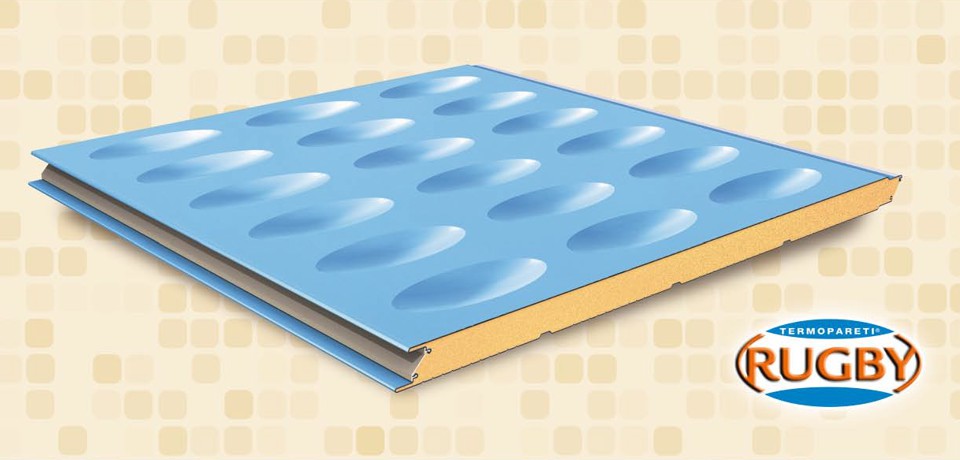

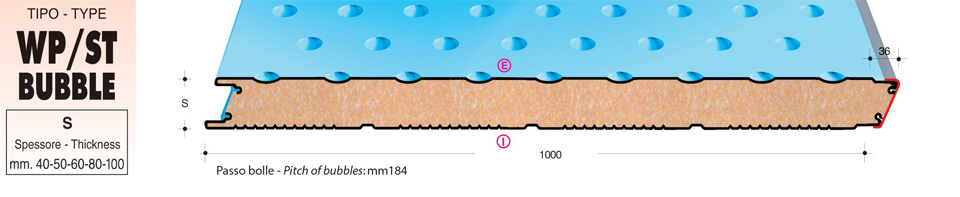

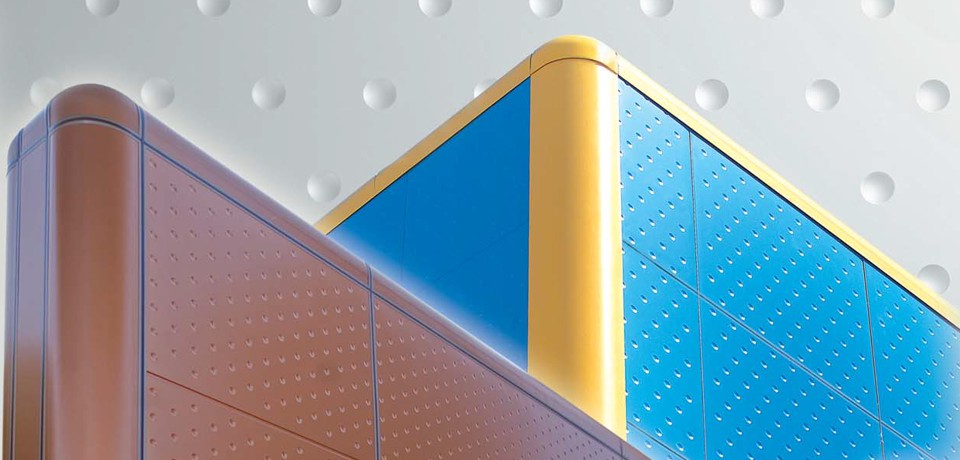

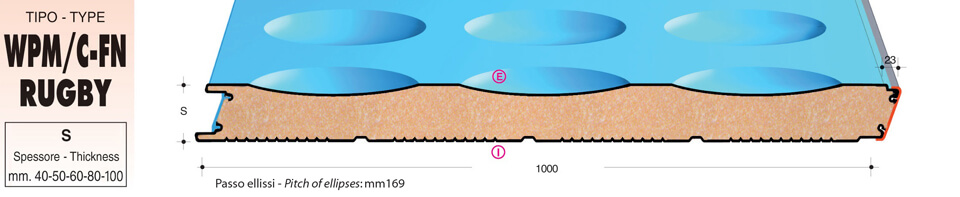

The system is versatile. In fact you can employ flat panels; panels called BUBBLE with pressed spherical imprints on the external surface and many adaptable elements in a wide range of developments and colours that underline the high architectural standard.

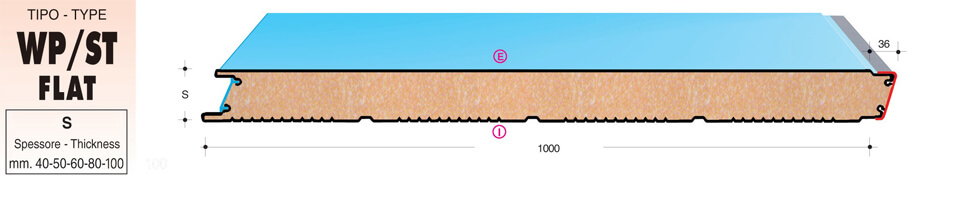

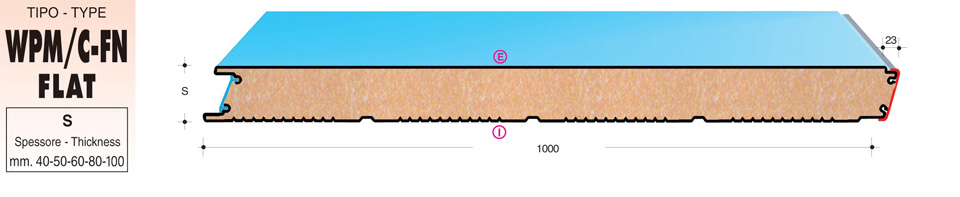

Types

Peculiar characteristics

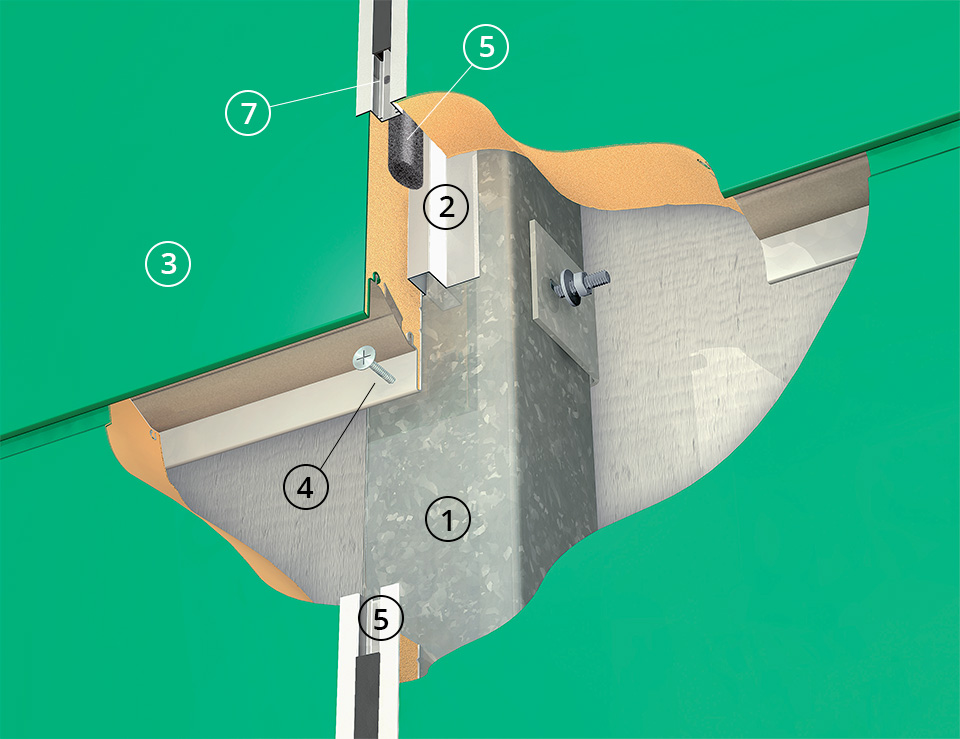

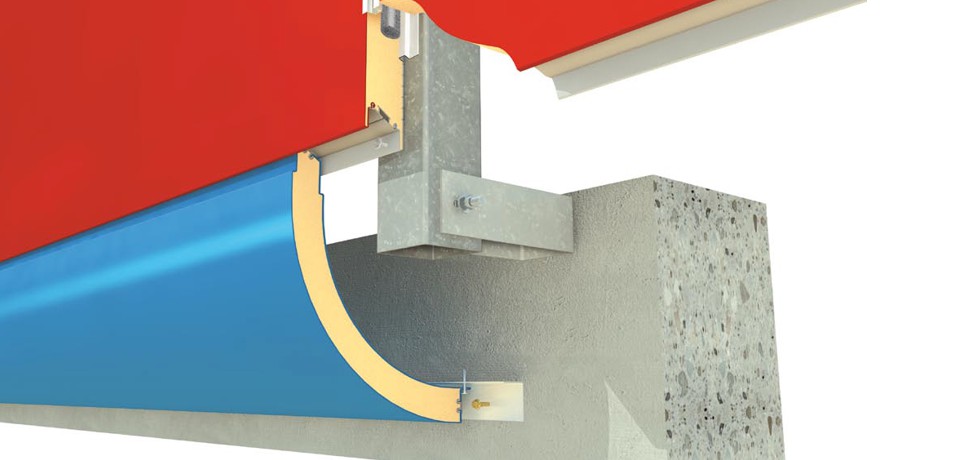

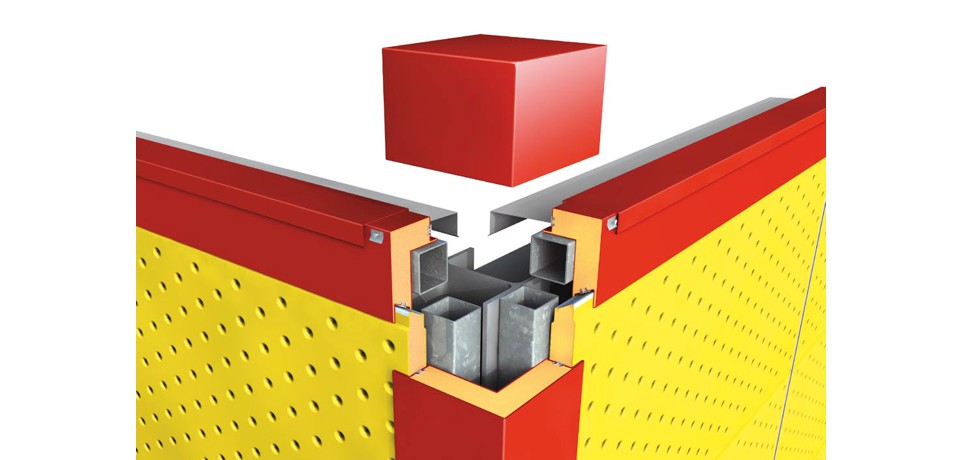

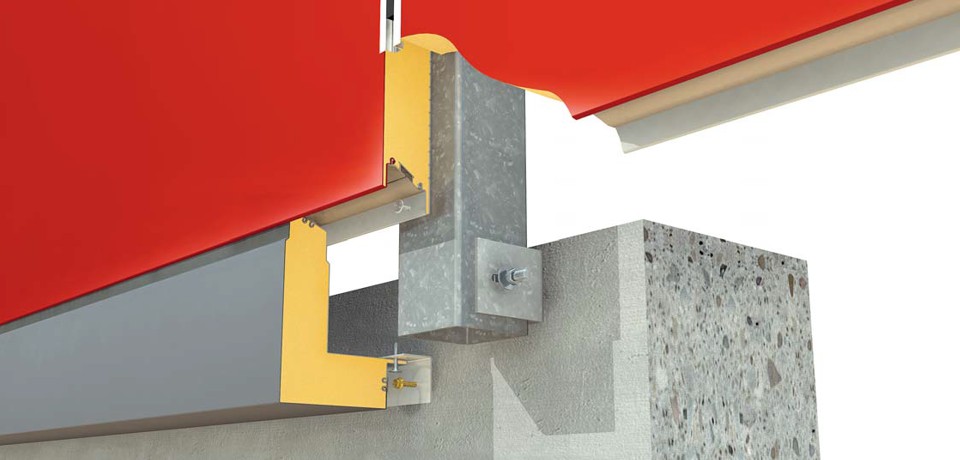

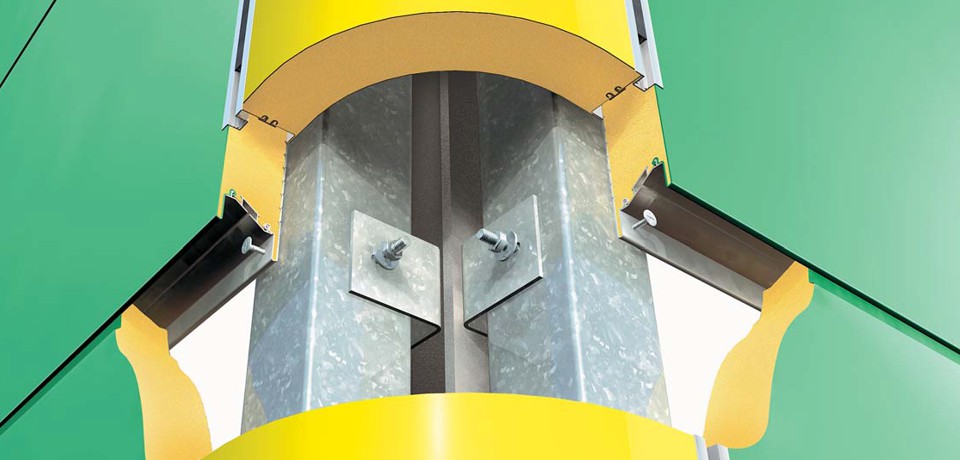

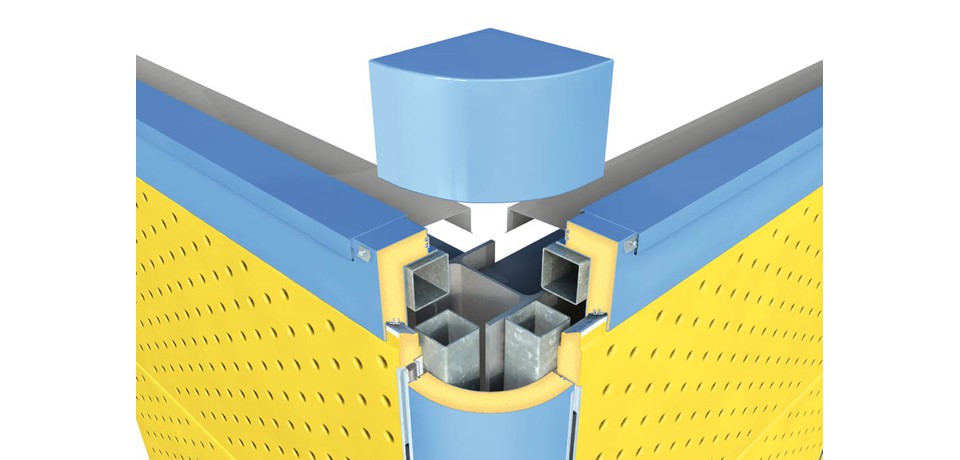

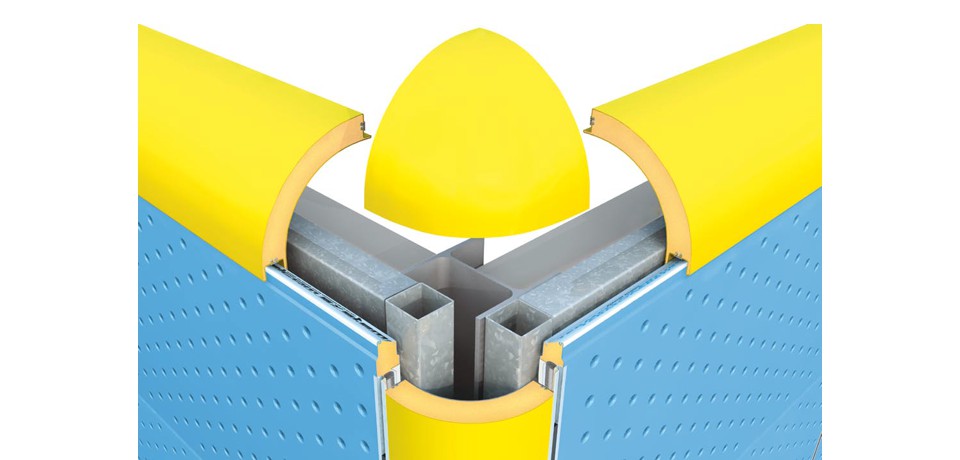

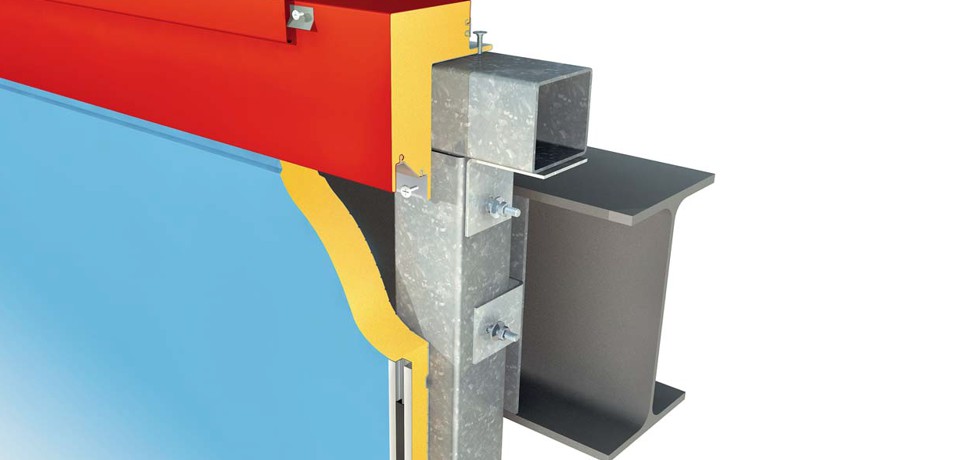

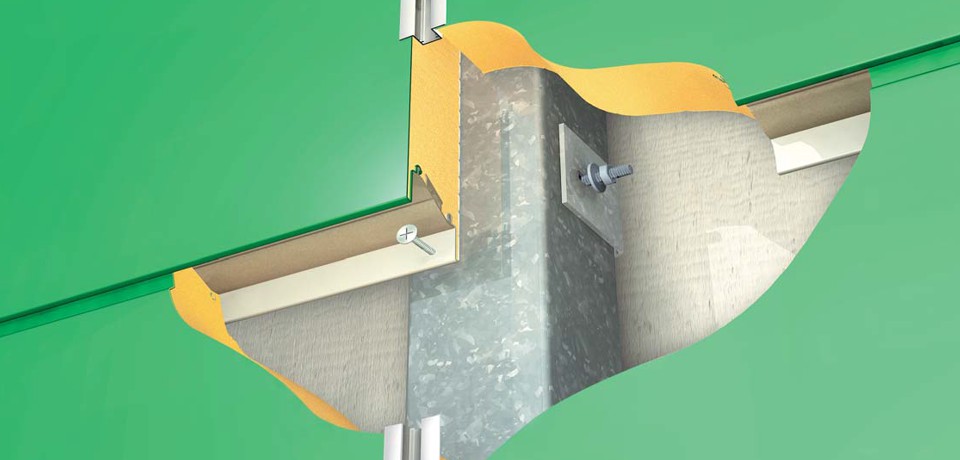

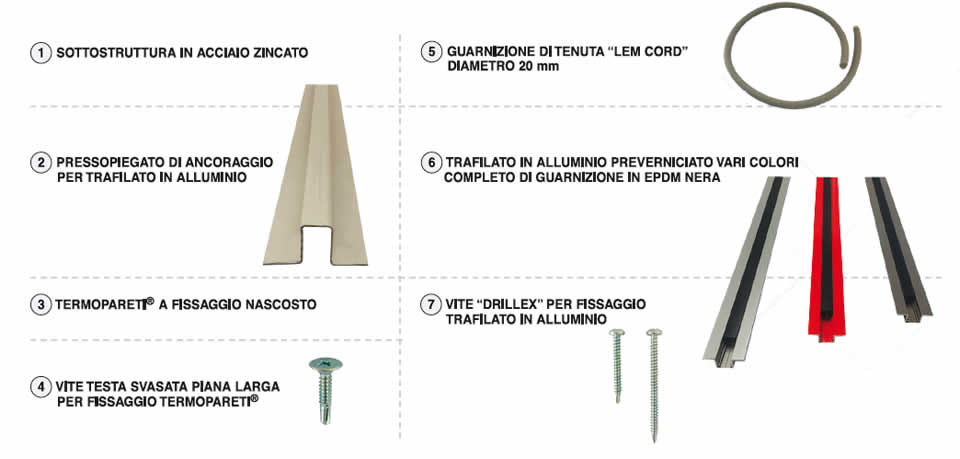

SERBOND® is constituted by a light substructure in galvanized steel, fixed to the bearing structure of the building. The monolithic sandwich panels with stabilized flatness, have a joint with thermic cut, a hidden fixing and they are planned to insert special profiles in extruded aluminium. The system offers a wide series of finishing elements with thermic cut: rounded and right corners, edges, thresholds, windowposts and also panels with special development and tailor-made joints.

Performace characteristics

Supports
STEEL- S 250 GD + UNI EN 10147 and prepainted
ALLUMINIUM – allay 3105 physic statte H46 UNI EN 1396
COPPER – Cu-DHP – R240 EN 1172
STAINLESS STEEL – AISI 304 UNI 10372

Insulation
PUR Density 40 Kg/m3
λ = 0,0022 W/m° K

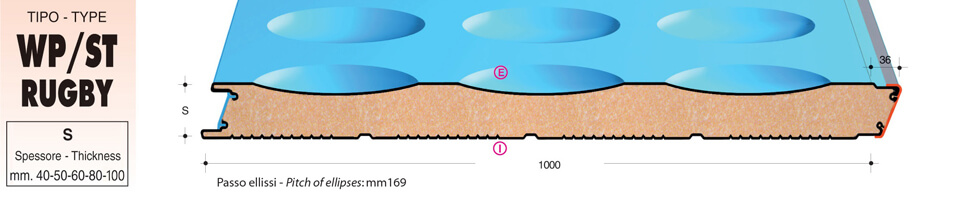

Thikness
mm. 40-50-60-80-100

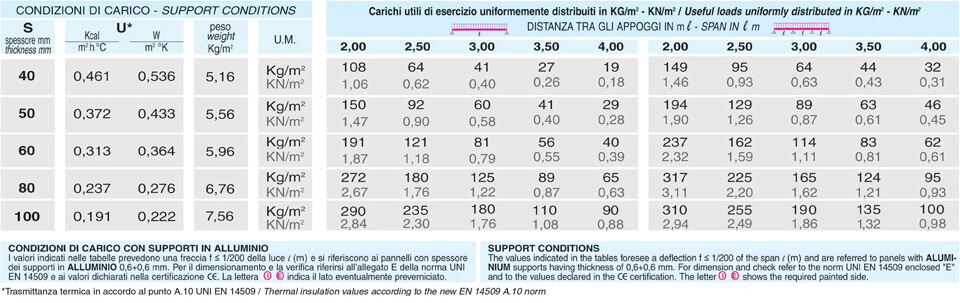

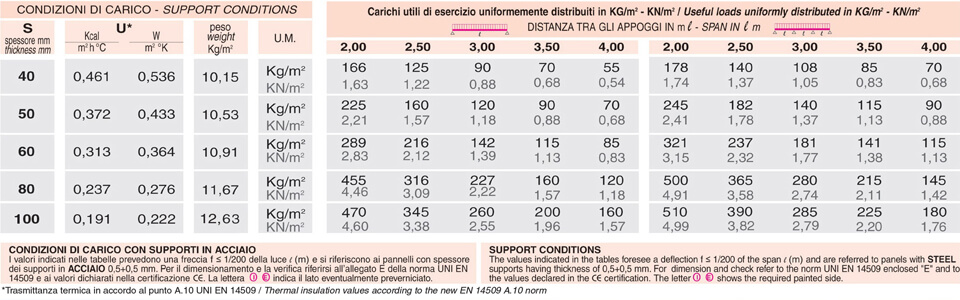

Support conditions

Catalogues

For more details you can read online or download in PDF format in all the catalogs produced by Elcom System Spa.
